MEDICAL DIVISION
Medi-Kool Saline SS
(Micro & Saline Depth)
About the Medi-Kool Dual Saline SS
This unit was developed specifically to store saline for the induced Hypothermia Protocol. As of 2015 these units cannot operate in a “Cool only” style. The MK SALINE is now temperature controlled as all the others.
This unit comes with two different depth options
(see measurements below)

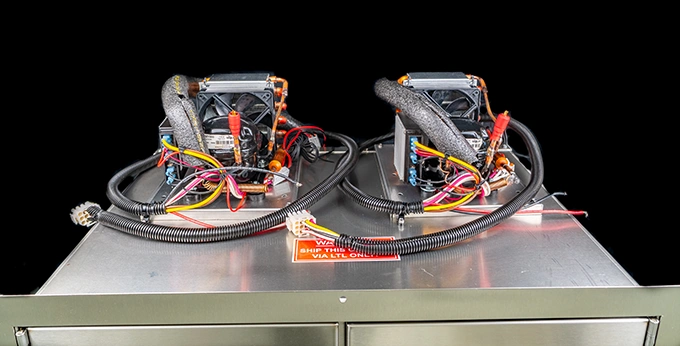

Compressor can be mounted to the rear , right, left or top of the unit.
Door can be hinged top or bottom.
All Medi-Kool units come with our standard lock & key.
Each unit can range in temperature from 32°F – 110°F with our standard control board.

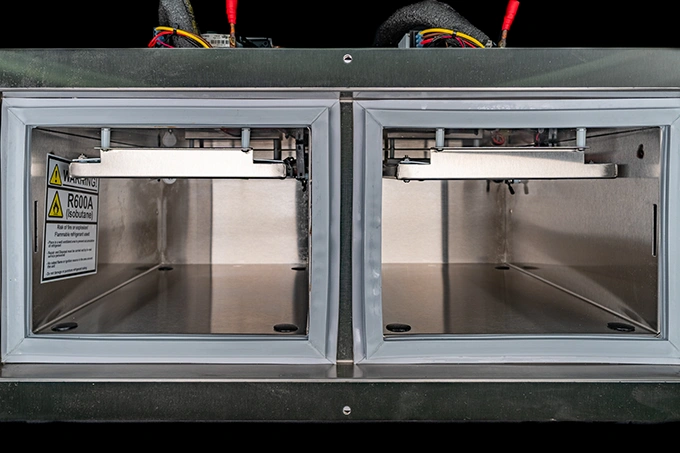

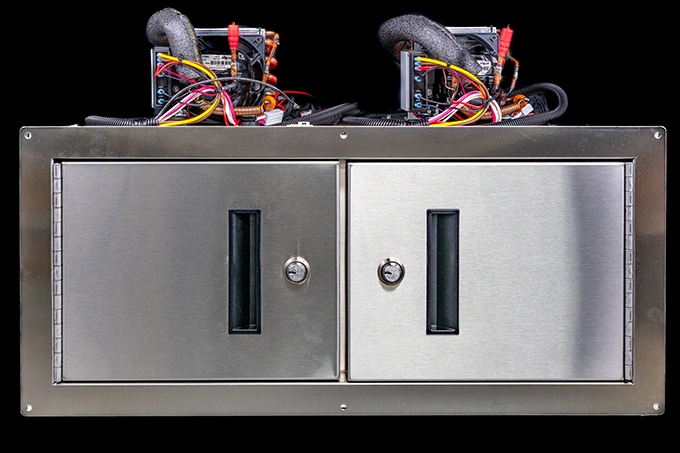

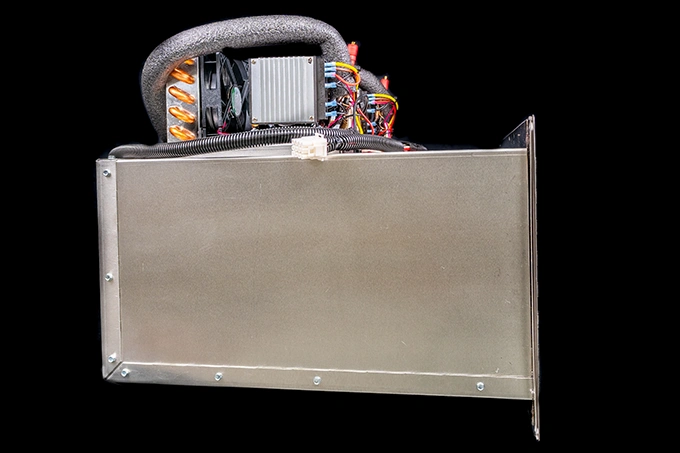

Medi-Kool Saline SS
Specifications
Running Amperage
Startup = 10 amps
Running = 5.8 amps
Dimensions*
MK SALINE / MICRO DEPTH
Internal: (Each Bay)
10″ Wide x 9 7/8″ Deep x 5 3/4″ High
Cutout Dimensions:
14.525″ Wide x 12.625″ Deep x 10.15″ High
MK SALINE / SALINE DEPTH
Internal: (Each Bay)
10″ Wide x 15 7/8″ Deep x 5 3/4″ High
Cutout Dimensions:
14.525″ Wide x 18.625″ Deep x 10.15″ High
Important
Airflow Requirements: 100 CFM or better
Vent fan requires its own 12v source .
Documentation
*Dimensions do not include compressor. Compressor Dimensions: 13″ Wide x 7″ Deep x 7 1/2″ High. Please be sure to include compressor dimensions when measuring for install.
